Stone Column Design in Indianapolis: Ground Improvement for Glacial Till Soils

Indianapolis didn't sprawl outward by accident. The city's growth followed the White River floodplain and carved through layers of Wisconsin-age glacial till that still dictate every foundation decision today. When the original Mile Square was platted in 1821, builders worked with shallow footings on stiff clay; now, as redevelopment pushes into the old industrial corridors southeast of downtown, engineers routinely encounter compressible lacustrine silts that can't support concentrated loads without ground improvement. The test pits program we run on these sites consistently reveals interbedded soft zones at depths of 8 to 15 feet—material that would settle unacceptably under a five-story structure. Stone column design offers a predictable way to transfer load through those weak layers, increasing bearing capacity while accelerating consolidation, and our team has applied it on more than two dozen Indianapolis projects where conventional deep foundations proved uneconomical.

A properly designed stone column array can double the bearing capacity of soft Indianapolis clay while cutting primary consolidation time by a factor of ten.

Methodology and scope

The geotechnical contrast across Indianapolis is stark: north of 38th Street, you're dealing with dense lodgement till that an excavator can barely scratch; south toward Beech Grove and the old White River oxbows, the soil profile flips to soft, normally consolidated clays with moisture contents pushing 35 percent. That variability means a stone column array that works in Broad Ripple won't necessarily translate to Fountain Square. We design each installation using site-specific data from CPT testing, which gives us a continuous profile of tip resistance and sleeve friction—critical for identifying thin drainage lenses that can short-circuit pore pressure dissipation during vibro-replacement. Column spacing, diameter, and depth are then calibrated to achieve a target composite friction angle, typically between 38 and 42 degrees, verified against ASTM D1586 blow counts taken before and after treatment. The result is a reinforced soil mass that behaves predictably under both static and seismic loading, something the IBC requires for structures in Seismic Design Category A, which covers all of Marion County.

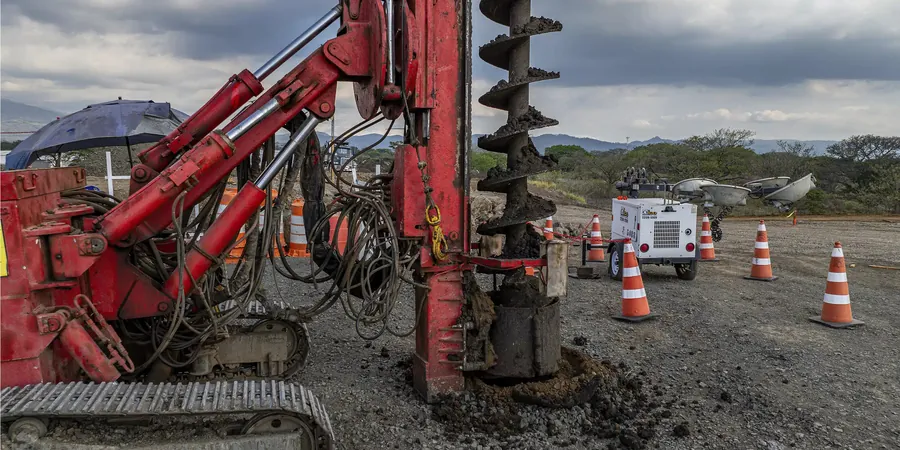

Stone Column Design in Indianapolis: Ground Improvement for Glacial Till Soils

Local considerations

Two sites in Indianapolis, barely three miles apart, can behave like completely different geologic provinces. Consider the area around the former GM Stamping Plant west of the river versus the near-east side neighborhoods built on outwash sand terraces. The stamping plant site sits on up to 20 feet of undocumented fill over soft alluvium—material so erratic that an unverified stone column design could lead to differential settlement exceeding an inch across a building footprint. The near-east side, by contrast, has cleaner sand with high permeability, where the primary risk isn't settlement but fines migration into the stone column if the gradation isn't matched to the native soil's D15 and D85 values. We've pulled collapsing holes on two projects in the past five years where the original design assumed uniform soil conditions that simply didn't exist. A thorough pre-design investigation with grain-size analysis and Atterberg limits, combined with a test column section, eliminates that uncertainty before production installation begins.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.org

Applicable standards

ASTM D1586-18 (Standard Test Method for Standard Penetration Test), ASTM D2487-17 (Classification of Soils for Engineering Purposes), IBC Chapter 18 (Soils and Foundations), ASCE 7-22 (Minimum Design Loads)

Associated technical services

01

Vibro-Replacement Column Design

Full engineering package including composite shear strength analysis, settlement calculations, and column grid layout for soft clay and silt sites.

02

Pre-Production Test Section Programs

Installation and instrumentation of test columns with SPT verification at 3-day, 7-day, and 28-day intervals to confirm design assumptions before full-scale work.

03

Liquefaction Mitigation Arrays

Stone column networks designed to drain excess pore pressure and densify loose saturated sands, meeting NCEER/Youd-Idriss performance criteria.

04

Peat and Organic Soil Bypass Systems

Deep stone columns penetrating through isolated peat pockets in glacial kettle deposits, transferring structural loads to competent till below.

Typical parameters

ParameterTypical value
Typical column diameter24 to 42 inches
Depth range (Marion County)15 to 45 feet
Area replacement ratio0.10 to 0.35
Target composite friction angle38° to 42°
Post-treatment bearing capacity gain2x to 4x untreated soil
Applicable seismic categorySDC A per IBC / ASCE 7
Verification methodASTM D1586 SPT pre- and post-installation

Frequently asked questions

What does stone column design cost for a typical Indianapolis commercial building?

Engineering design fees for a stone column system on a mid-size commercial project in Indianapolis generally range from US$1,620 to US$5,030, depending on the number of borings, the complexity of the stratigraphy, and whether a test section program is required. This covers the geotechnical analysis, column layout drawings, and post-installation verification specifications.

How deep do stone columns typically need to go in Marion County?

Column depths in Marion County usually range from 15 to 45 feet. The exact depth depends on the thickness of the soft surficial layer and the elevation of competent bearing material—often the dense lodgement till that underlies much of the area. We determine this from CPT soundings or SPT borings taken at the project site.

Can stone columns be used to mitigate liquefaction risk in Indianapolis?

While Indianapolis is in a low-seismicity region, liquefaction can still be a concern in loose saturated sand deposits along the White River and its tributaries. Stone columns act as vertical drains and densify the surrounding soil, reducing excess pore pressure buildup during cyclic loading. The design follows NCEER guidelines based on SPT blow count correlations.

How do you verify that the stone columns are performing as designed?

We specify a verification program that includes pre- and post-installation SPT testing per ASTM D1586 at representative column locations, with minimum energy-corrected blow count targets. For critical structures, we may also recommend plate load tests or multi-channel surface wave testing to confirm the composite shear wave velocity improvement.

What's the difference between stone columns and aggregate piers?

The terms are often used interchangeably, but in our Indianapolis practice we distinguish them by installation method and depth. Stone columns are installed by vibroflotation and typically extend 15 to 45 feet through soft cohesive soils. Aggregate piers are shorter, rammed elements better suited to granular soils. We select the method based on the soil profile and the required bearing capacity.
